Product Description

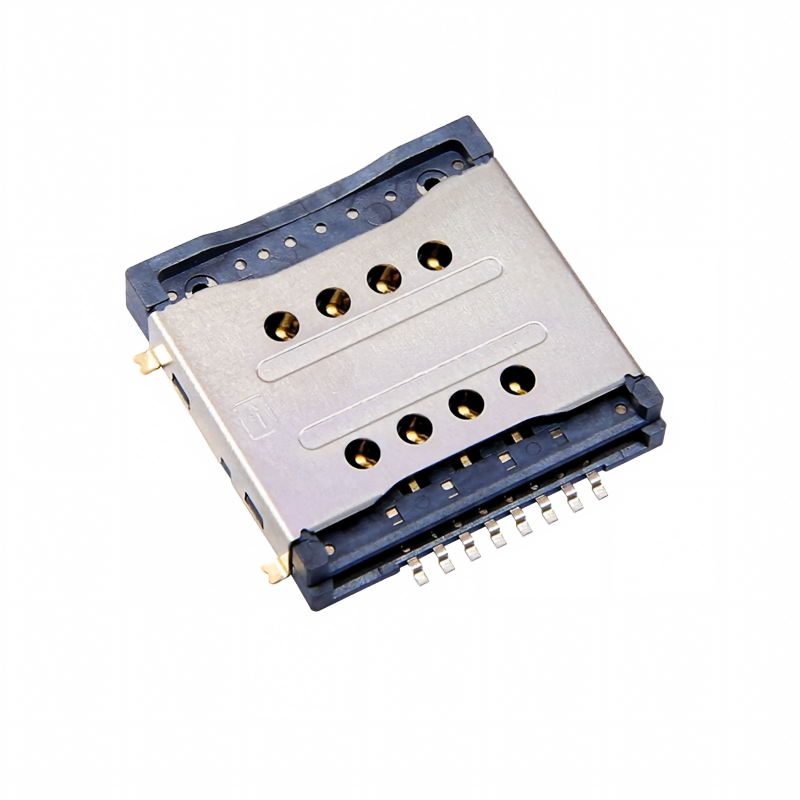

The MOLEX Double-Layer SIM Card Socket 3.0H No-Push Type is a compact PCB-mounted SIM card connector designed for electronic products that require two SIM card positions within a limited PCB area.

Its double-layer structure allows two card interfaces to be arranged vertically, making it suitable for equipment where PCB space is limited but multi-SIM functionality is required. The No-Push design eliminates the conventional push-push ejection mechanism, providing a simpler mechanical structure for applications where frequent user card removal is not the primary requirement.

Typical applications include mobile communication devices, 4G/5G communication equipment, IoT gateways, industrial terminals, POS devices, smart meters, vehicle communication systems, and other embedded electronics.

Feature

1. Two SIM Interfaces in a Compact Structure

This is particularly relevant to:

• Dual-SIM communication devices
• Cellular gateways
• IoT terminals
• Industrial communication controllers
• Vehicle communication equipment

For compact electronic products, PCB area is often a more important design constraint than simply selecting the smallest individual connector.

2. No-Push Structure for Simplified Mechanical Design

Unlike push-push SIM sockets, a No-Push SIM Card Socket does not rely on a spring-loaded push-push eject mechanism.

This can be advantageous when the SIM card is intended to remain installed during normal equipment operation.

Typical examples include:

• Industrial IoT gateways
• Smart meters
• Embedded cellular terminals
• Industrial controllers
• Vehicle-mounted communication devices

Applications

Cellular Communication Equipment

Suitable for:

• 4G/5G routers;
• cellular gateways;
• wireless communication modules;
• industrial modems;
• embedded cellular terminals.

Industrial IoT

The connector can be used in:

• IoT gateways;
• M2M communication devices;
• remote monitoring equipment;
• industrial controllers;
• smart metering systems.

Automotive & Telematics

Potential applications include:

• vehicle tracking terminals;
• telematics control units;
• fleet management devices;
• connected vehicle gateways;
• roadside communication equipment.

For automotive applications, however, the exact connector temperature, vibration and qualification requirements should be confirmed before design-in.

POS & Payment Equipment

Micro SIM connectivity can be used in:

• mobile POS terminals;
• payment terminals;
• vending machines;
• unattended payment systems;
• connected retail equipment.

GPS & Tracking Devices

The compact Micro SIM interface is suitable for:

• GPS trackers;
• asset tracking terminals;
• personal tracking equipment;
• logistics monitoring devices.

Smart Meters & Smart Devices

Typical applications include:

• electricity meters;
• water meters;
• gas meters;
• smart home gateways;
• remote monitoring devices.
